Hi,
I have a question about the 120 ohm termination resistor.

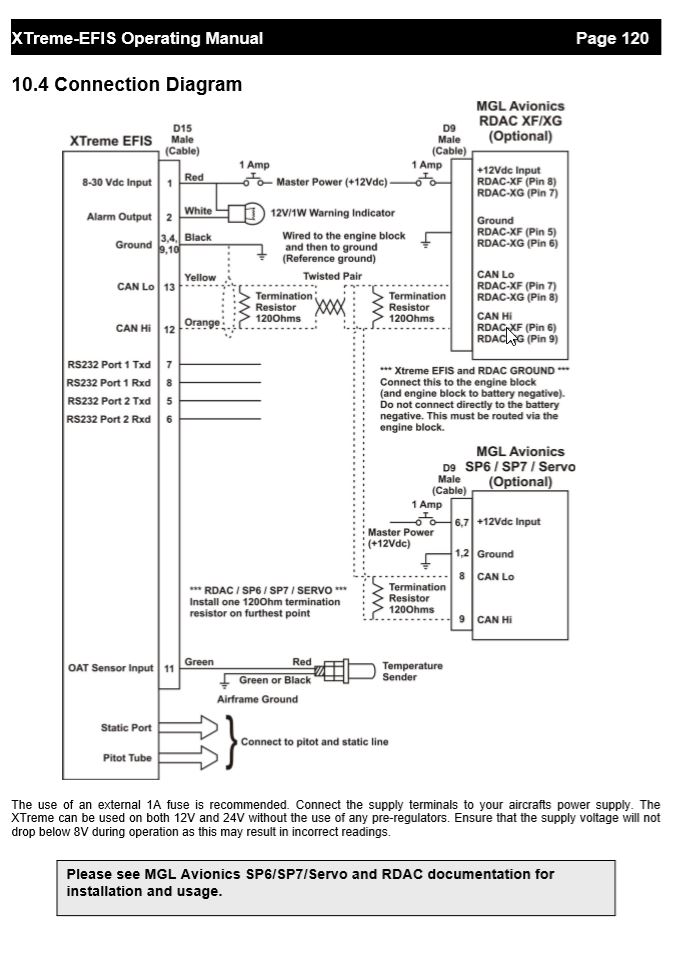

3 resistors are used in the Extreme XF instruction manual.

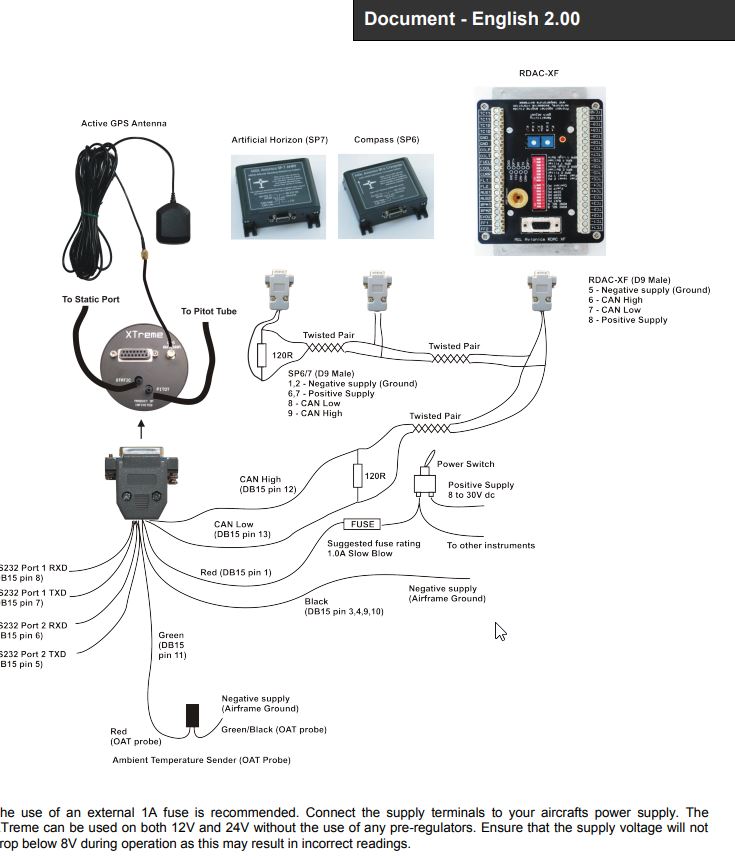

Only two resistors are used in the wiring diagram.
Which version is valid?
Greetings
Christoph
CAN Bus 120 Ohm termination
Forum rules
Please keep your posts friendly and on topic. No politics or discussions of a controversial nature not related to our favorite subject of flying and avionics. Offending posts may be removed or moderated.
Please keep your posts friendly and on topic. No politics or discussions of a controversial nature not related to our favorite subject of flying and avionics. Offending posts may be removed or moderated.
-
christoph.glomski
- Posts: 12
- Joined: Wed Feb 10, 2021 8:28 am
CAN Bus 120 Ohm termination
- Attachments
-
- Wiring.jpg (83.18 KiB) Viewed 3029 times
-
- Wiring Extreme.jpg (90.93 KiB) Viewed 3029 times
Re: CAN Bus 120 Ohm termination
Yes this is confusing - thanks for the heads-up.
Only ever two resistors on a can bus - one on each end of the CAN bus wire run. Short stubs to connect equipment are permitted along the bus (that don't get resistors).
For shorter CAN bus runs typically found on our aircraft I find a single 100 ohm resistor placed anywhere on the bus also works just fine.
Only ever two resistors on a can bus - one on each end of the CAN bus wire run. Short stubs to connect equipment are permitted along the bus (that don't get resistors).
For shorter CAN bus runs typically found on our aircraft I find a single 100 ohm resistor placed anywhere on the bus also works just fine.
