Custom Screens
I've been searching this forum for examples of custom EFIS screen designs and can't seem to fine ANY, am I looking in all the wrong places? I'm specifically interested in Landscape MX1. Is there a place where folks have been sharing their designs? If not perhaps we can start a thread on it (right here?).
- Paul Sistern
- Posts: 12
- Joined: Mon Aug 31, 2020 12:40 pm
Re: Custom Screens
I think it would be a good idea to set up a database of screens on here. Perhaps Rainier can create a section where we can upload them?
Paul
Paul
MGL Avionics Dealer for UK and Ireland
Selling MGL for 14 years and counting.
Happy to export worldwide.
https://www.parts4aircraft.com/
Selling MGL for 14 years and counting.
Happy to export worldwide.
https://www.parts4aircraft.com/
MX1 LandScape Custom
These screens based on stock with a few changes for my plane. It's a work in progress. I'll try to update these from time to time.
Seems I can only upload 3 pics and not the zip file for the screens. Sorry.
Seems I can only upload 3 pics and not the zip file for the screens. Sorry.
- Attachments
-

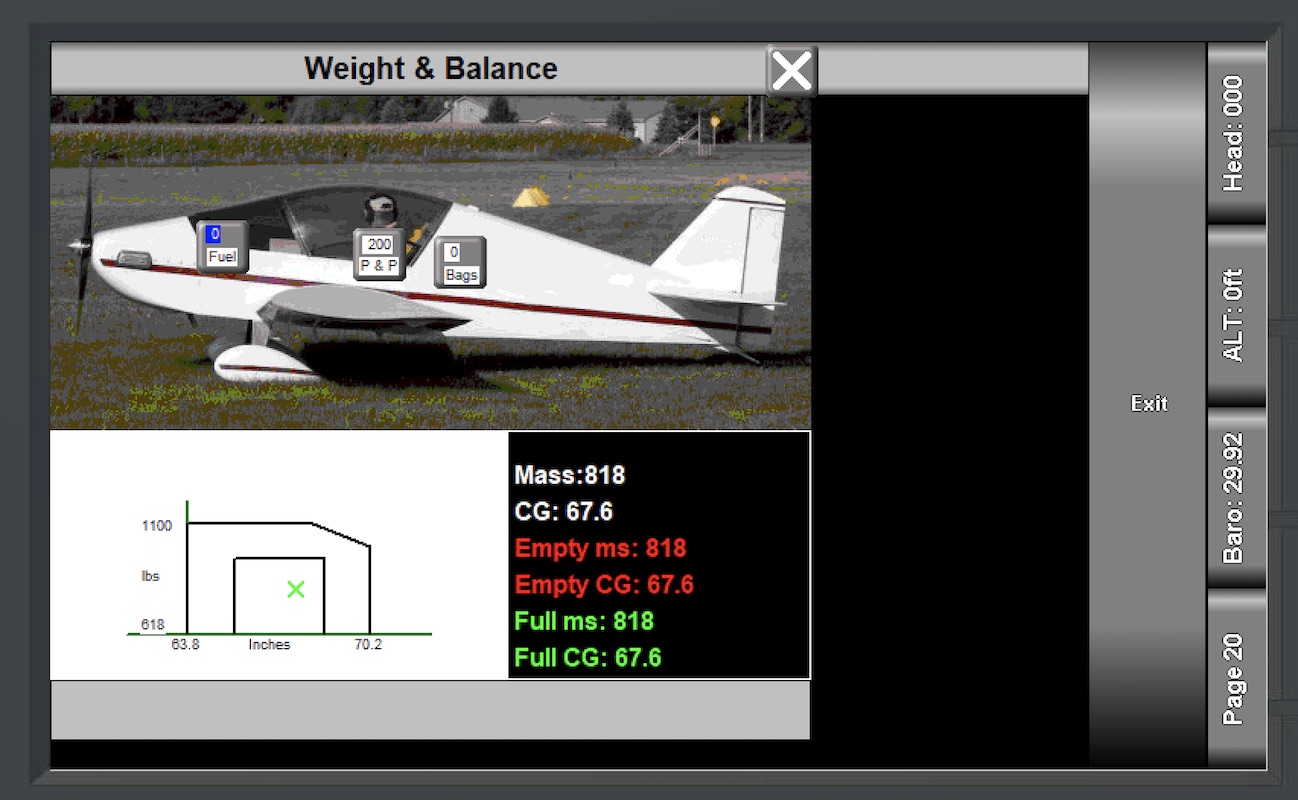

- Sonex W/B page. Note the numbers are all the same (bug?)
- page20_wb.jpg (192.59 KiB) Viewed 4179 times
-
- This is my menu page. A work in progress
- page5.jpg (240.16 KiB) Viewed 4179 times
-

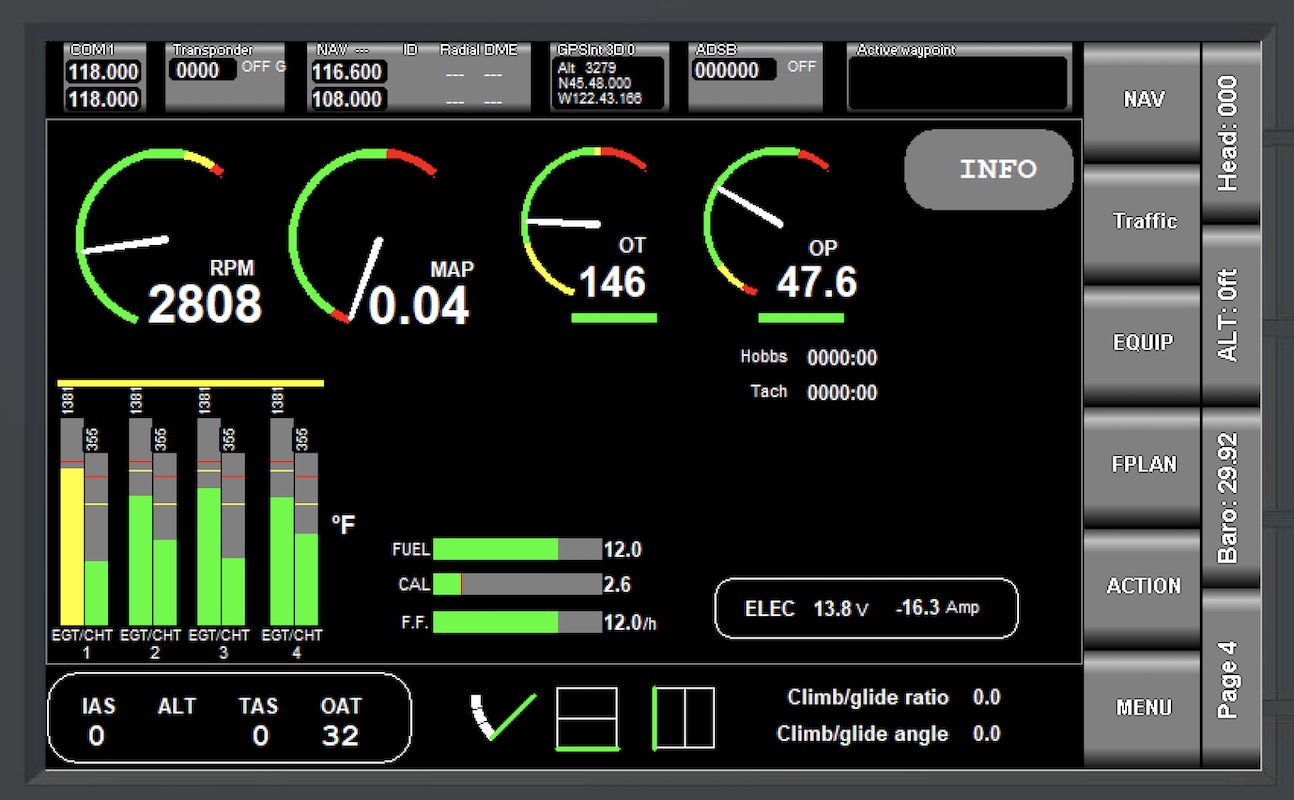

- Dedicated Engine page
- page4.jpg (206.74 KiB) Viewed 4179 times
Last edited by brs on Sun Feb 07, 2021 5:41 am, edited 1 time in total.
Re: Custom Screens
Here are the zips for my screens and w/b (sonex legacy)
- Attachments
-
- WB.zip
- Sonex W/B files
- (31.8 KiB) Downloaded 374 times
-
- MX1_LS_Screens.zip
- Zip with my custom screens
- (123.04 KiB) Downloaded 305 times
